Manufacturer, Exporters & Supplier of
Threaded Equal & Unequal Cross Fittings

Threaded Equal & Unequal Cross Fittings

We are one of the leading Manufacturers, Supplier and Exporters of High Quality ASME B16.11 Forged Threaded Equal & Unequal Cross. These Threaded Tee is a type of pipe fitting which is T-shaped having two outlets, at 90° to the connection to the main line. These are also offered in accordance with the national and international standard & specifications. These Threaded Cross available in different size, grades, specification & thickness as per the clients requirments. These Forged Threaded Cross widely used in various application industry like oil & gas, chemical processing, petrochemical etc.

Specifications :

Standards : ASME A182, ASME B16.9, ASME B16.11, MSS SP-43, MSS SP-95, BS3799
Dimension : ANSI B16.11
Size : 1/4" to 4"
Class : 2000LBS, 3000LBS, 6000LBS
Type : Threaded - SCREWED (SCRD) – NPT, BSP, BSPT
Form : Reducing Cross, Unequal Cross, Equal Cross, Forged Cross.

Grades :

Stainless Steel Threaded Equal & Unequal Cross :

ASTM A182, ASTM / ASME SA 358, ASTM / ASME SA 312 GR. TP304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.

Carbon Steel Threaded Equal & Unequal Cross :

ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C

Alloy Steel Threaded Equal & Unequal Cross :

ASTM / ASME A 182, ASTM / ASME A 335 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91

Nickel Alloy Threaded Equal & Unequal Cross :

ASTM / ASME SB 336, Nickel Alloy 200 (UNS No. 2200), Nickel Alloy 201 (UNS No. 2201), Monel 400 (UNS No. 4400), Alloy 20 / 20 CB 3 (UNS No. 8020), Inconel 825 (UNS No. 8825), Inconel 600 (UNS No. 6600), Inconel 601 (UNS No. 6601), Inconel 625 (UNS No. 6625), Hastelloy C 276 / C22 / B2 (UNS No. 10276)

Duplex & Super Duplex Steel Threaded Equal & Unequal Cross :

ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.

Copper Alloy Steel Threaded Equal & Unequal Cross :

ASTM / ASME SB 111 UNS NO.C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 , C 71500
ASTM / ASME SB 466 UNS NO.C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

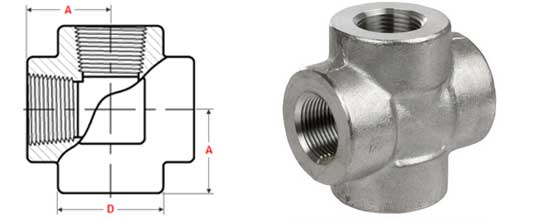

ASME B16.11 Forged Threaded Equal & Unequal Cross Dimensions :

Threaded Equal & Unequal Fittings

Threaded Unequal Cross Dimensions NPS 1/2 to 4 Class 2000

NPS Min Length of Thread Outside Dia of Band
D		 Center to End
A		 Min
WT
B J
1/2 10.9 13.6 33 28 3.18
3/4 12.7 13.9 38 33 3.18
1 14.7 17.3 46 38 3.68
1.1/4 17 18 56 44 3.89
1.1/2 17.8 18.4 62 51 4.01
2 19 19.2 75 60 4.27
2.1/2 23.6 28.9 92 76 5.61
3 25.9 30.5 109 86 5.99
4 27.7 33 146 106 6.55

Threaded Reducing Cross Class 3000 Dimensions NPS 1/2 to 4

NPS Min Length of Thread Outside Dia of Band
D		 Center to End
A		 Min
WT
B J
1/2 10.9 13.6 38 33 4.09
3/4 12.7 13.9 46 38 4.32
1 14.7 17.3 56 44 4.98
1.1/4 17 18 62 51 5.28
1.1/2 17.8 18.4 75 60 5.56
2 19 19.2 84 64 7.14
2.1/2 23.6 28.9 102 83 7.65
3 25.9 30.5 121 95 8.84
4 27.7 33 152 114 11.18
