Manufacturer, Exporters & Supplier of
Threaded Equal & Unequal Tee Fittings

Threaded Equal & Unequal Tee Fittings

We are one of the leading Manufacturers, Supplier and Exporters of High Quality ASME B16.11 Forged Threaded Equal & Unequal Tee. These Threaded Tee is a type of pipe fitting which is T-shaped having two outlets, at 90° to the connection to the main line. These are also offered in accordance with the national and international standard & specifications. These Threaded Tee available in different size, grades, specification & thickness as per the clients requirments. These Forged Threaded Tee widely used in various application industry like oil & gas, chemical processing, petrochemical etc.

Specifications :

Standards : ASME A182, ASME B16.9, ASME B16.11, MSS SP-43, MSS SP-95, BS3799
Dimension : ANSI B16.11
Size : 1/4" to 4"
Class : 2000LBS, 3000LBS, 6000LBS
Type : Threaded
Form : Equal Tee, Reducing Tee, Barred Tee , Lateral Tee
Material : Stainless Steel, Carbon Steel, Alloy Steel, Nickel Alloy

Grades :

Stainless Steel Threaded Equal & Unequal Tee :

ASTM / ASME SA 403 GR WP "S" / "W" / " WX" 304 , 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347 H

Carbon Steel Threaded Equal & Unequal Tee :

ASTM / ASME A 234 WPB, WPC
ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70

Alloy Steel Threaded Equal & Unequal Tee :

ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91

Nickel Alloy Threaded Equal & Unequal Tee :

ASTM / ASME SB 336 UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)

Duplex & Super Duplex Steel Threaded Equal & Unequal Tee :

ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.

Copper Alloy Steel Threaded Equal & Unequal Tee :

ASTM / ASME SB 111 UNS NO.C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 , C 71500
ASTM / ASME SB 466 UNS NO.C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

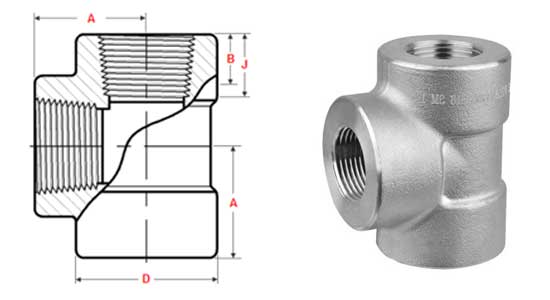

ASME B16.11 Forged Threaded Equal & Unequal Tee Dimensions :

Threaded Equal & Unequal Tee

Threaded Reducing Tee Class 2000 Dimensions NPS 1/2 to 4

NPS Min Length of Thread Outside Dia of Band
D		 Center to End
A		 Min
WT
B J
1/2 10.9 13.6 33 28 3.18
3/4 12.7 13.9 38 33 3.18
1 14.7 17.3 46 38 3.68
1.1/4 17 18 56 44 3.89
1.1/2 17.8 18.4 62 51 4.01
2 19 19.2 75 60 4.27
2.1/2 23.6 28.9 92 76 5.61
3 25.9 30.5 109 86 5.99
4 27.7 33 146 106 6.55

Threaded Equal Reducing Tee Class 3000 Dimensions NPS 1/2 to 4

NPS Min Length of Thread Outside Dia of Band
D		 Center to End
A		 Min
WT
B J
1/2 10.9 13.6 38 33 4.09
3/4 12.7 13.9 46 38 4.32
1 14.7 17.3 56 44 4.98
1.1/4 17 18 62 51 5.28
1.1/2 17.8 18.4 75 60 5.56
2 19 19.2 84 64 7.14
2.1/2 23.6 28.9 102 83 7.65
3 25.9 30.5 121 95 8.84
4 27.7 33 152 114 11.18
